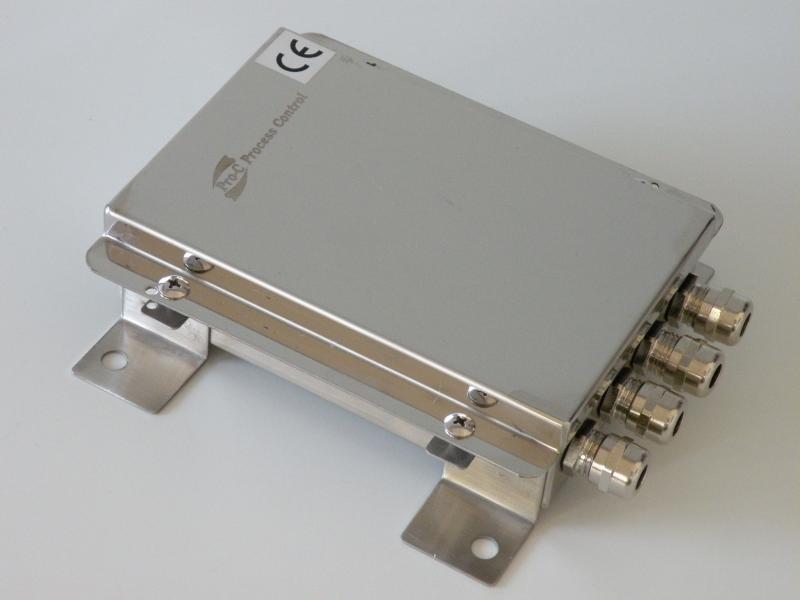

PRC50LC-I Loadcell Current Converter
| | Documents related to this product:
|
PRC-50 LC-I LOADCELL CURRENT CONVERTER
PRC50LC-I is the signal conditioner device which has a high accuracy class and is used to convert the informations of weight that come from load cell (max. 8 pcs) to 0/4-20mA and 0/2-10V in the industrial environment. It is a device which can be used easily with its IP65 protection class metal case in the external environment also. It is provided that it is affected at least by electrical noises through its metal case. It can be nourished with the supply voltage of 24V, AC and DC transformer and power supply. The analog active filter that can be selected by Dip-switch is used for the electrical noise in this device.
|
Supply Voltage
|
20 – 32VDC / 18-26 VAC
|
|
Power Consumption
|
≈ 7,5W
|
|
Operating Temperature
|
-5 ~ +60°C
|
|
Accuracy Class
|
% 0.2
|
|
Input Type
|
Loadcell ( 1- 2 – 3mV/V ) maks.
350Ω, 8 pcs can be connected parallel.
|
|
Output Type
|
0/4-20 mA and 0/2-10V Current and Voltage can be taken simultaneously.
|
|
Offset Adjustment
|
Up to %25 inlet signal
|
|
Span Adjustment
|
Up to %20 outlet signal
|
|
Connection Style
|
Screwed Terminal
|
|
Case Size
|
141 x 185 x 52 mm Case
Body (W-L-H) Connector Mounted
161 x 185 x 52 mm case
If it measured from food part,
Connector mounted
|
|
Type of Mounting
|
Screwed on mounting plate
|
|
Case
|
Stainless Steel
|
|
Protection Class
|
IP65
|
|
