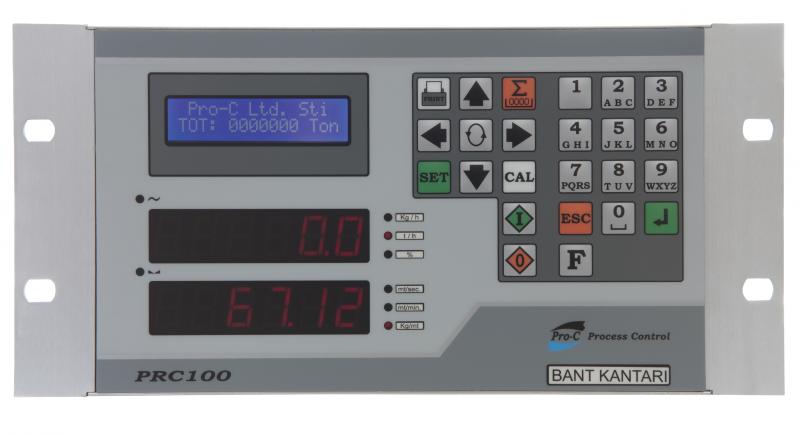

PRC100 BELT SCALE INDICATOR AND CONTROLLER
| | Documents related to this product:
|
PRC100 BELT SCALE INDICATOR AND CONTROLLER
PRC100 Belt Scale is used for instant and constant weighted scale operation of product passed to conveyor belt. Thanks to the device, the total amount of goods, the informations such as instantaneus current can be traced over the device ass well as via Modbus communication protocol is SCADA systems. Once again, the application of dosing belt can be made with PRC100. Thanks to the analogue inputs and outputs, if it prompted whether analogue control or computerized Scada control via communication port can be made.
|
Supply Voltage
|
220V AC ±%10
|
|
Power Consumption
|
≈ 15W
|
|
Operating Temperature
|
-5~ +60°C
|
|
Accuracy Class
|
% 0.2
|
|
Inputs
|
1 x Loadcell Input (max. 4 pcs.LC)
1 x Analog Current (mA)
1 x Encoder
|
|
Outputs
|
2 x Analog Current (mA)
1 x RS485 Modbus or RS232
2 x 7A NA Relay
|
|
Offset Adjustment
|
with unit software on keyboard
|
|
Span Adjustment
|
with unit software on keyboard
|
|
Connection Style
|
Socket Terminal
9 Pin DSUB-RS485 or RS232
15 Pin DSUB- Loadcell Connection
|
|
Panel Section
|
235 x 135 mm
|
|
Case Size
|
270 x 133 x 96 mm
|
|
Type of mounting
|
Plate Mounting
|
|
Case
|
Anodized Aluminum
|
|
Protection Class
|
Front Panel IP60, Case IP20
|
|
